Rule Preprocessor

A preprocessor replaces parts of a rule body during execution in order to ease development, have dynamic rules or to facilitate a more secure execution.

Business Object Notation

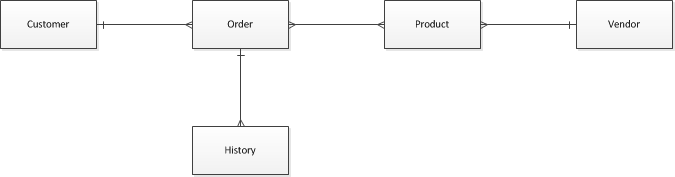

We'll be using the following Business Object Model for this explanation.

Name	Example	Description
Business Object	`<%=Table("Customer")%>`	Business objects get mapped to tables in the database during deployment. Replaces the tag with the correct table name.
Attribute	`<%=Column("Customer","Phone")%>`	Attributes gets mapped as columns in tables in the database during deployment. Replaces the tag with the correct column name.
One-to-Many Relationship Key	`<%=Key("Customer","CustomerOrder")%>`	One-to-many relationships create foreign keys in accompanying tables during deployment. Replaces the tag with the correct column name of the foreign ID.
Many-to-Many Primary Key	`<%=Key("Order","OrderProduct","Entity")%>`	Many-to-many relationships creates an linking table between two business objects. Replaces the tag with the correct primary key of the Order table that is used by the linking table.
Many-to-Many Foreign Key	`<%=Key("Order","OrderProduct","Association")%>`	Many-to-many relationships creates an linking table between two business objects. Replaces the tag with the correct foreign key in the linking table that links to the Order.
Many-to-Many Linking Table	`<%=Table("OrderProduct")%>`	Many-to-many relationships creates an linking table between two business objects. Replaces the tag with the correct linking table name.

Placeholders

Unique identifier

Name	Example	Description
	`@TOKEN_ACCESSSUBJECTS@`	List of all roles, access subject, the user is assigned to in the runtime environment the current user is logged into. Comma separated.
	`@TOKEN_ALLACCESSSUBJECTS@`	@TOKEN_ACCESSSUBJECTS@ + User Access Subject on user + access subjects of groups. Comma separated.
Environment Domain ID	`@TOKEN_DOMAIN@`	d
	`@TOKEN_GROUPACCESSSUBJECTS@`	Replaces the tag with all the groups the current user is part of, comma separated. access subjects
	`@TOKEN_SYSTEMDOMAIN@`	The domain
	`@TOKEN_SYSTEMDOMAINUSER@`	name of schema tenant
User ID	`@TOKEN_USERACCESSSUBJECT@`	The current user's Access Subject Code
Sorting column	`@SORT@`	If you are using a Grid on a page, then the SORT and DIR are automatically passed when you click on a column's header. Replaced with the column's schema name
	`@DESC@`
Sort order	`@DIR@`	If you are using a Grid on a page, then the SORT and DIR are automatically passed when you click on a column's header. Replaced with the sort direction, either ASC or DESC.

Functional Tags

Name Example Description

Sorting <%=Sort("@SORT@","@DESC@")%> Replaces with an ORDER BY @SORT@ @DESC@ if both SORT and DESC are passed to the rule

Search

<%=Filter(OPTION=:Name_OPTION, VALUE1=:Name_VALUE1, VALUE2=:Name_VALUE2, FIELD=col_Name)%>

Replaces with a the correct WHERE clause if OPTION is present and a correct VALUE1 and VALUE2. If OPTION is missing or not enough information to make the statement, it ignores that tag.

Schema data type: Text or Large Text

OPTION	Description
LIKE	Replaces with AND COL_NAME LIKE :Name_VALUE1
EQUAL	Replaces with AND COL_NAME = :Name_VALUE1

Schema data type: Date

OPTION	Description
BETWEEN	If VALUE1 is present then replaces with AND COL_DEADLINE >= :Deadline_VALUE1 If VALUE2 is present than replaces with AND COL_DEADLINE <= :Deadline_VALUE2 If both VALUE1 and VALUE2, then combines them.

Schema data type: Integer/Number

OPTION	Description
EQUAL	Replaces with AND COL_COST = :Cost_VALUE1
GREATER	Replaces with AND COL_COST >= :Cost_VALUE1
LESS	Replaces with AND COL_COST <= :Cost_VALUE1

Comma separated VALUE1 and VALUE2 parameters

You can create OR statements by sending values as comma separated in the VALUE1 and VALUE2 parameters. For example:

OPTION	VALUE1	Result
EQUAL	200, 300, 400	AND (COL_COST = 100 OR COL_COST = 200 OR COL_COST = 300)
LIKE	Joh, Kat	AND (COL_NAME LIKE "Joh" OR COL_NAME LIKE "Kat")

Not Null <%= IfNotNull(":NewCost", "AND (COL_COST = :NewCost)") %> Replaces with the second
